Ntawm Honour Machinery Group, peb tau tsim qauv Honour -A4-4, ib kab ntawm A4 daim ntawv txiav thiab ntim tshuab, zoo tagnrho rau kev txiav thiab ntim ntawv ntawm 20-25 pob ib feeb. Qhov kev lag luam ntawv txiav rau A4 daim ntawv txiav cov ntawv loj dua rau hauv qhov loj A4. Peb kuj kho cov ntawv loj raws li cov neeg siv khoom xav tau. Hu rau Honour hnub no nrog cov lus nug, thiab peb cov neeg ua haujlwm zoo yuav pab koj nrhiav qhov koj xav tau. Kev xaiv qhov chaw rau peb cov ntawv tsis siv neeg wrapping tshuab kuj muaj.

A4 daim ntawv txiav thiab ntim tshuab stacks ntawv hauv reams ncaj qha tom qab txiav daim ntawv yob:
Daim Ntawv Yob:

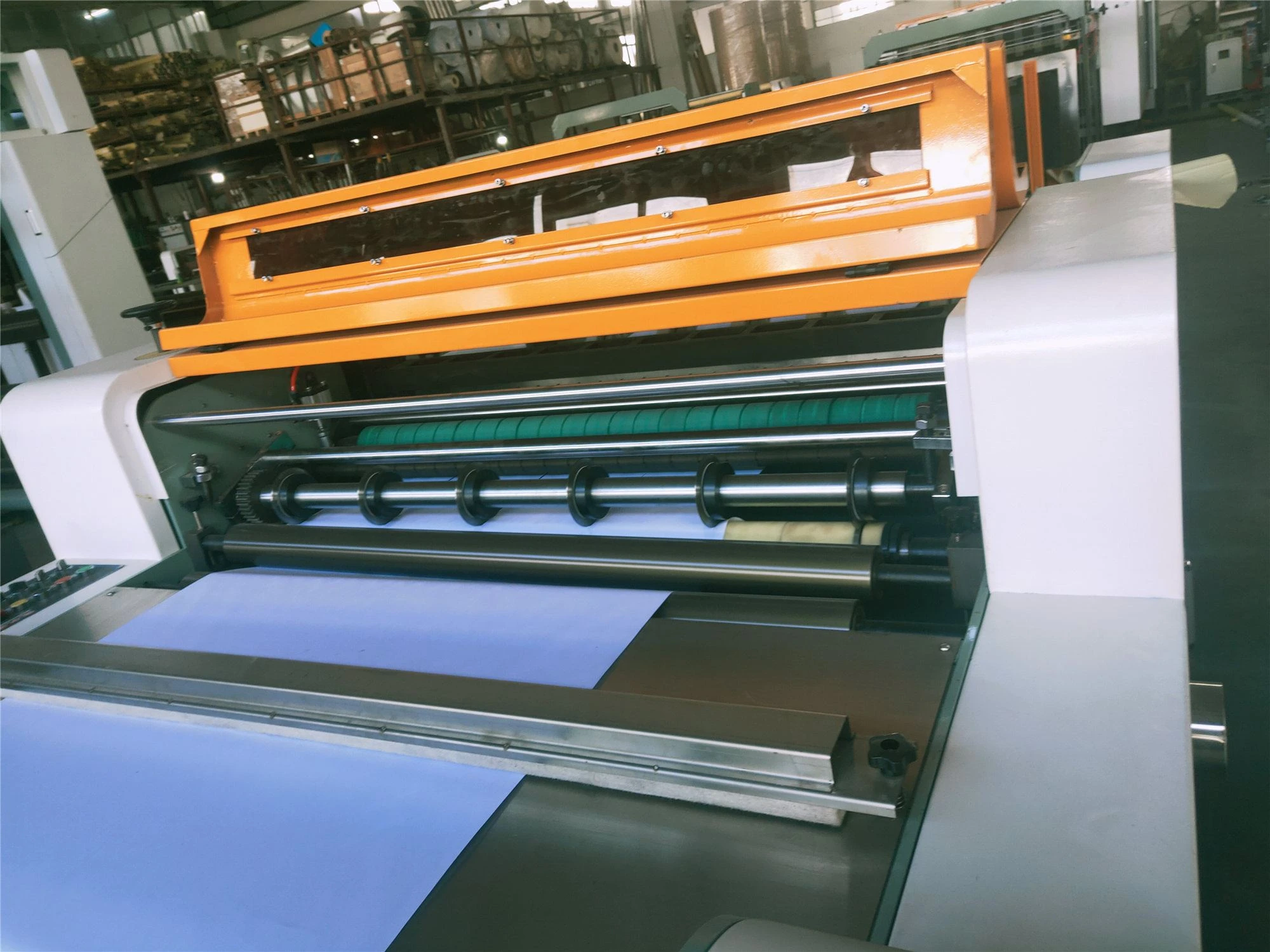

Luam Ntawv: A4 Paper Cutting Packaging Machine

Dab tsi ua rau lub tshuab no sawv tawm

Qhov no A4 daim ntawv txiav thiab ntim tshuab yog yooj yim heev rau siv. Nws khiav tag nrho los ntawm unwinding, slitting, suav, stacking rau ntim, yog li koj tsis xav tau kev saib xyuas tas li thiab nws txuag tau ntau ntawm kev ua haujlwm.

Qhov txiav txiav yog qhov siab heev, nrog qhov yuam kev ntawm ± 0.2mm, muab cov npoo huv si tsis muaj burrs. Qhov ceev yog txhim khu kev qha thiab ruaj khov nyob rau hauv qhov tseeb ntau lawm, ua rau nws zoo heev. Nws siv cov riam uas muaj npe txawv teb chaws uas hnav- tiv taus thiab kav ntev, yog li koj hloov riam tsawg dua thiab txo nqi.

Ntau qhov tseem ceeb ntawm cov khoom siv hluav taws xob thiab kev sib kis tau raug xa tawm thiab txhim khu kev qha, yog li lub tshuab ua haujlwm zoo nrog kev vibration thiab suab nrov, thiab tsis tshua muaj kev tawg txawm tias mus ntev-teev. Nws yog tswj los ntawm PLC kov npo, yooj yim rau kev khiav lag luam, thiab yuav ceeb toom koj tau txais yog tias muaj qee yam yuam kev, ua rau kev saib xyuas yooj yim. Nws kuj txhawb kev cai qhov ntau thiab tsawg kom tau raws li cov neeg siv khoom sib txawv.

A4 Paper Cutting Packaging Machine

Invention Patents rau A4 Daim Ntawv Txiav thiab Ntim Tshuab
1. Daim ntawv sau cov khoom siv rau daim ntawv txiav tshuab.
2. Daim ntawv cutter ncej rau txiav tshuab.
3. Wrapping ntawv folding khoom rau luam ntawv packing tshuab.

Kev Taw Qhia Txog A4 Daim Ntawv Txiav thiab Ntim Tshuab
Peb daim ntawv luam ntawv slitting, sheeting & ream wrapping tshuab (qauv Honour - A4) yog ib qho tshiab tsim cov khoom siv ntawv uas siv cov cuab yeej siv siab heev rau kev ua haujlwm siab. Nrog siab txiav precision, cov khoom siv ntawv tsis siv neeg ua tau raws li cov qauv thoob ntiaj teb, txuag lub sijhawm thiab kev ua haujlwm.

Nta
Daim ntawv txiav thiab ntim tshuab yog tsis siv neeg tag nrho nrog PLC tswj qhov system thiab tshuab automation. Tag nrho cov txheej txheem muaj xws li unwinding daim ntawv yob, txiav, suav, thauj, reams dispensing, thiab ntim kom cov kev siv zog txo.

Configuration ntawm A4 Daim Ntawv Txiav thiab Ntim Tshuab

1	Tsis yog -shaft yob-loading tswj system	2set ib
2	Advanced nro tswj qhov system -	4set ib
3	Kev tiv thaiv -warping mechanisms	4set ib
4	Slitting riam	5set ib
5	Ib txhij hla-txiav riam	1set ib
6	Kev kub ceev ntawv pub system	3set ib
7	Tsawg ceev ntawv pub system	2set ib
8	Ntug trimming thiab tso tawm qhov system -	1set ib
9	2D oscillation, ua cov ntawv kom zoo; ntsia hlau lifting ntaus ntawv siv los sau cov nplooj ntawv rau reams	1set ib
10	PLC suav ntaus ntawv	1set ib
11	Reams ntawm daim ntawv longitudinal ejecting khoom	1set ib
12	PLC yuam kev ceeb toom thiab nres qhov system, PLC tswj qhov system	1set ib

Main Technical Parameters ntawm A4 Daim Ntawv Txiav thiab Ntim Tshuab

Max. dav ntawm daim ntawv yob	8 46mm
Net txiav dav	8 40mm
Tus naj npawb ntawm cov cuab yeej txiav	4 cuttings -A4 210mm(dav)
Txoj kab uas hla ntawm daim ntawv yob	400-1200 hli
Txoj kab uas hla ntawm daim ntawv yob lub hauv paus	3 "(76.2mm) los yog 6" (152.4mm)
Qhov hnyav ntawm daim ntawv	60-100g/ m²
Ntev ntawm daim ntawv txiav	A4 (297 hli)
Daim ntawv kom muaj nuj nqis	0-500 daim
Max. ream qhov siab	65mm ib
Tsim kom ceev ntawm daim ntawv txiav	160m / min
Txiav ceev	538 zaug / min
Lub sijhawm voj voog ntawm txhua qhov ream	4.3 / min
Daim ntawv txiav ceev	130m / min
Ua hauj lwm txiav ceev	437 zaug / min
Ream shipping ceev	3.5 / min (14 reams / min)
Daim ntawv txiav raug	± 0.2 hli
Daim ntawv txiav mob	1.Stable ceev 2.Paper yob yuav tsis tawg 3. Daim ntawv pov thawj
Kev sib kis	AC zaus hloov dua siab tshiab, stepless ceev tswj
Lub zog loj	3 theem / 380v / 50Hz
Tswj voltage	220V AC / 22V DC fais fab mov
Tag Nrho Lub Zog	35 KW TSI
Kev siv cua	300 NL / min
Pneumatic siab	6bar ua
Zuag qhia tag nrho dimension (txiav unit)	15000 × 2750 × 2100mm
Qhov hnyav (txuas unit)	12 T
Zuag qhia tag nrho dimension (packing unit)	6000 × 3400 × 1600mm
Qhov hnyav (txuas unit)	2.5 T

Qhia ntxaws ntxaws rau A4 Daim Ntawv Txiav thiab Ntim Tshuab

Roll Loading Unit	Txuas nrog 4 cov yob yob thiab cov khoom sib nqus siab heev - lub zog nres thiab hydraulic system kom cov ntawv tau noj ruaj khov los ntawm tsis muaj qhov txhab lossis tawg.
Slitting Unit	Siv Delsar's up-slitting riam los ntawm ltalis, ib rab riam nrog zoo dua parting thiab lub neej kev pab cuam 3 zaug ntev dua riam los ntawm lwm hom.
Sheeting Unit	Siv hnav- cov roj hmab uas muaj zog thiab qib siab ob lub tshuab cyclotron rau kev txiav kom raug thiab ua haujlwm ntev.
Sheeting Unit	Siv cov riam tawv tawv German lub npe St Paul. Cov riam no muaj lub neej ua haujlwm 6 lub sijhawm ntev dua li cov riam zoo sib xws los ntawm lwm hom.
Conveying Unit 1	Siv ContiTech txoj siv tawv los ntawm lub teb chaws Yelemees thiab Weinview kov npo los ntawm Taiwan.
Daim ntawv Stacking Unit	Siv lub tog raj kheej tsis muaj piston rods thiab nce thiab nqis lub cev muaj zog los ntawm lub teb chaws Yelemees, txo qhov kev vibration thiab suab nrov.
Conveying Unit 2	Stably conveys reams ntawm nplooj ntawv mus rau wrapping unit.
Wrapping Unit	Wraps reams ntawm nplooj ntawv (500pcs) txiav.
Hluav taws xob Cheebtsam	Siv Siemens 'PLC thiab Omron's photoelectric hloov, ua kom lub neej ua haujlwm ntev.
