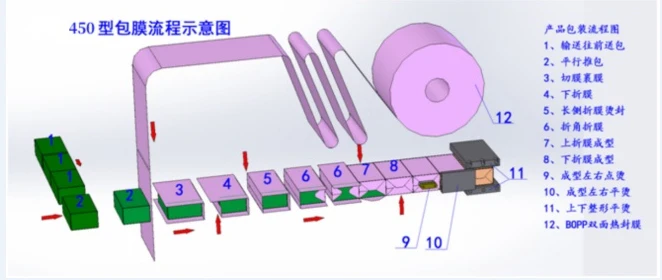

Schematic daim duab ntawm Wrapping txheej txheem
Lub tshuab ntim khoom no sib tw nrog ib qho - hniav daim ntawv txiav los ntim cov ntawv ua haujlwm hauv A3, A4, A5 thiab lwm qhov ntau thiab tsawg.
1.Conveyor pub rau pob rau pem hauv ntej
2. Kab rov tav pob thawb
3. Zaj duab xis txiav thiab qhwv
4.Cov yeeb yaj kiab hauv qab nthuav tawm
5.Long -sab zaj duab xis folding thiab kub sealing
6.Kub folding thiab zaj duab xis wrapping
7.Top zaj duab xis folding txoj kev
8.Cov zaj duab xis hauv qab folding txoj kev
9.Sab laug thiab txoj cai qhov chaw tshav kub sealing tom qab tsim
10.Sab laug thiab txoj cai ca cua sov sealing tom qab sib sau
11.Sab saum toj thiab hauv qab shaping tiaj sealing
12.BOPP ob -sab tshav kub- sealable zaj duab xis
1.Manual loading
2. Lub thawv thawb
3.Vertical zaj duab xis pub
4. Ntev sab sealing
5.Upper ntug folding ntawm ob sab
6.Txoj ntug folding ntawm ob sab
7. Sab sealing
8.shaping / Trimming
9. Cov khoom tiav
|
Haum rau cov khoom ntim khoom |
0.018 hli-0.03 hli BOPP ob lub-sab tshav kub-seal zaj duab xis, txheej ntawv, coated kraft ntawv; Sab nraud txoj kab uas hla 320 mm, puab txoj kab uas hla 70 mm |
|
Ntim ceev |
10-40 pob ib feeb (ceev adjustable nyob ntawm cov khoom loj) |
|
packing ntsuas |
L80-420 hli; W60-300 hli; H30-120 mm (tag nrho qhov ntev tsis tuaj yeem teem rau qhov siab tshaj plaws lossis qhov tsawg kawg nkaus). |
|
tsim zog |
8.5 kwm |
|
siv zog |
8.5 kwm |
|
hluav taws xob |
380V-50Hz |
|
ua hauj lwm cua siab |
0.7 Mpa |
|
Ntaus Nyhav (kwv yees) |
9 00kg |
|
Host Size |
2900*1100*1850 |
|
Thauj Dimension |
1550 * 380 * 830mm |
Configuration List
|
Lub npe khoom siv hluav taws xob |
kom muaj nuj nqis |
Hom thiab qhov chaw ntawm Keeb Kwm |
|
Main servo lub cev muaj zog |
1 |
Xinjie |
|
txo lub thawv |
2 |
Oumait |
|
servo lub cev muaj zog |
3 |
Xinjie |
|
kov npo |
1 |
|
|
Kub Tswj Module |
1 |
|
|
PLC |
1 |
|
|
AC contactor |
1 |
Schneider |
|
pab relay |
2 |
OMRON |
|
Hloov mus txawv tebchaws |
1 |
|
|
solid state relay |
7 |
|
|
Lub tog raj kheej |
9 |
Yadeke |
|
electromagnetic valve |
5 |
|
|
Kis Tsav |
1 |
Ningbo Zhongda |
Cov txiaj ntsig tseem ceeb thiab koj cov txiaj ntsig
Kev kos duab ntawm cov khoom pov thawj hauv tsev thiab txawv teb chaws tsim kev paub, lub tshuab 3D wrapping no tau txais kev sib kis tau los ntawm cov khoom siv pneumatic rau kev ua haujlwm zoo ib yam.
Kev pub zaj duab xis yog tsav los ntawm sprocket- chains thiab stepper motors, thaum muaj kev tiv thaiv ntau dhau ntawm lub thawv thawb lub tshuab txiav tawm qhov tsis tau npaj txhij txog; los ntawm kuv qhov kev paub txog kev teeb tsa, cov neeg siv tuaj yeem xaiv ncaj lossis 90℃tig conveyor layout dawb do kom phim qhov chaw sib txawv ntawm lub Hoobkas. Nws cov thav duab compact tso cai rau cov khoom hloov pauv sai los ntawm kev sib pauv me me ntawm cov khoom seem, yog li lub sijhawm poob rau kev hloov pauv loj lossis kev daws teeb meem niaj hnub nyob qis qis ntawm -site.
Hauv kev ua haujlwm tsis siv neeg puv puv, nws ua tiav kev noj zaub mov, qhwv, folding, sealing, shaping, suav, tiv thaiv -cov ntaub nplaum cuav thiab kub stamping rau ib leeg lossis pawg thawv; txuag preset specifications thiab photoelectric nrhiav kuj pab tau stacked packing, uas yuav pab tau cov neeg muas zaub hloov cov tsoos tshav kub shrink ntim rau tshuaj, tshuaj pleev ib ce, noj qab haus huv zaub mov, tshuaj yej thiab luam yeeb thawv.
Rau cov khoom siv qhwv, nws haum rau 0.018–0.03mm ob - sab tshav kub- foob BOPP zaj duab xis, laminated ntawv thiab kraft ntawv, khiav ntawm 10-40 pob ib feeb nrog adjustable ceev kom npog pob qhov ntev ntawm L80–420mm × W60–300mm 20mm × H30mm. Cov khoom siv hluav taws xob thiab pneumatic tseem ceeb yog muab los ntawm cov tuam txhab muaj npe nrov xws li Xinjie, Schneider, Omron thiab AirTac kom ntseeg tau ntev - siv lub sijhawm, thiab peb muab ib qho - xyoo tshuab warranty ntxiv rau kev saib xyuas tas mus li raws li cov qauv kev pabcuam.
Tiv tauj peb tam sim no txhawm rau kaw cov lus hais tau siv tau thiab npaj koj lub sijhawm xa khoom lub tshuab.
