Taw qhia

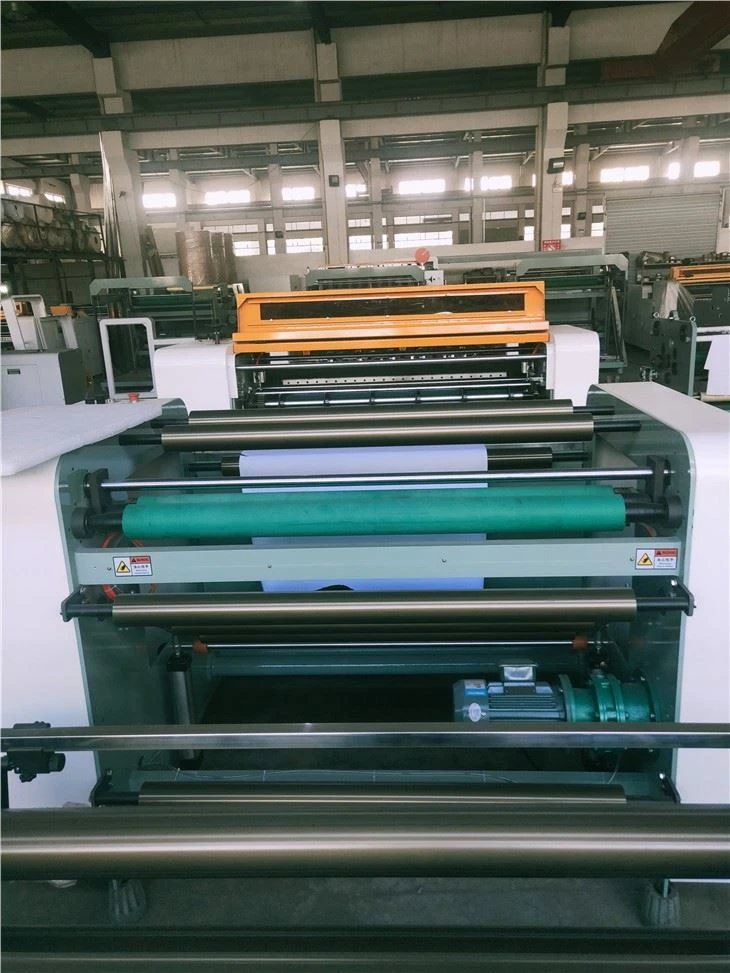

Ntawm Honour Machinery Group, peb tau tsim qauv Honour -A4-4, ib kab ntawm A4 daim ntawv txiav thiab ntim tshuab, zoo tagnrho rau kev txiav thiab ntim ntawv ntawm 20-25 pob ib feeb. Qhov kev lag luam ntawv txiav rau A4 daim ntawv txiav cov ntawv loj dua rau hauv qhov loj A4. Peb kuj kho cov ntawv loj raws li cov neeg siv khoom xav tau. Hu rau Honour hnub no nrog cov lus nug, thiab peb cov neeg ua haujlwm zoo yuav pab koj nrhiav qhov koj xav tau. Kev xaiv qhov chaw rau peb cov ntawv tsis siv neeg wrapping tshuab kuj muaj.
Configuration ntawm A4 Daim Ntawv Txiav thiab Ntim Tshuab
|
1 |
Tsis yog -shaft yob-loading tswj system |
2set ib |
|
2 |
Advanced nro tswj qhov system - |
4set ib |
|
3 |
Kev tiv thaiv -warping mechanisms |
4set ib |
|
4 |
Slitting riam |
5set ib |
|
5 |
Ib txhij hla-txiav riam |
1set ib |
|
6 |
High ceev ntawv pub system |
3set ib |
|
7 |
Tsawg ceev ntawv pub system |
2set ib |
|
8 |
Ntug trimming thiab tso tawm qhov system - |
1set ib |
|
9 |
2D oscillation, ua cov ntawv kom zoo; ntsia hlau lifting ntaus ntawv siv los sau cov ntawv rau reams |
1set ib |
|
10 |
PLC suav ntaus ntawv |
1set ib |
|
11 |
Reams ntawm daim ntawv longitudinal ejecting khoom |
1set ib |
|
12 |
PLC yuam kev ceeb toom thiab nres qhov system, PLC tswj qhov system |
1set ib |
Main Technical Parameters ntawm A4 Daim Ntawv Txiav thiab Ntim Tshuab
|
Max. dav ntawm daim ntawv yob |
8 46mm |
|
Net txiav dav |
8 40mm |
|
Tus naj npawb ntawm cov cuab yeej txiav |
4 cuttings -A4 210mm(dav) |
|
Txoj kab uas hla ntawm daim ntawv yob |
400-1200 hli |
|
Txoj kab uas hla ntawm daim ntawv yob lub hauv paus |
3 "(76.2mm) los yog 6" (152.4mm) |
|
Qhov hnyav ntawm daim ntawv |
60-100g/ m² |
|
Ntev ntawm daim ntawv txiav |
A4 (297 hli) |
|
Daim ntawv kom muaj nuj nqis |
0-500 daim |
|
Max. ream qhov siab |
65mm ib |
|
Tsim kom ceev ntawm daim ntawv txiav |
160m / min |
|
Txiav ceev |
538 zaug / min |
|
Lub sijhawm voj voog ntawm txhua qhov ream |
4.3 / min |
|
Daim ntawv txiav ceev |
130m / min |
|
Ua hauj lwm txiav ceev |
437 zaug / min |
|
Ream shipping ceev |
3.5 / min (14 reams / min) |
|
Daim ntawv txiav raug |
± 0.2 hli |
|
Daim ntawv txiav mob |
1.Stable ceev |
|
Kev sib kis |
AC zaus hloov dua siab tshiab, stepless ceev tswj |
|
Lub zog loj |
3 theem / 380v / 50Hz |
|
Tswj voltage |
220V AC / 22V DC fais fab mov |
|
Tag Nrho Lub Zog |
35 KW |
|
Kev siv cua |
300 NL / min |
|
Pneumatic siab |
6bar ua |
|
Zuag qhia tag nrho dimension (txiav unit) |
15000 × 2750 × 2100mm |
|
Qhov hnyav (txuas unit) |
12 T |
|
Zuag qhia tag nrho dimension (packing unit) |
6000 × 3400 × 1600mm |
|
Qhov hnyav (txuas unit) |
2.5 T |
Invention Patents rau A4 Daim Ntawv Txiav thiab Ntim Tshuab
1. Daim ntawv sau cov khoom siv rau daim ntawv txiav tshuab.
2. Daim ntawv cutter ncej rau txiav tshuab.
3. Wrapping ntawv folding khoom rau luam ntawv packing tshuab.
Kev Taw Qhia ntawm A4 Daim Ntawv Txiav thiab Ntim Tshuab
Peb daim ntawv luam ntawv slitting, sheeting & ream wrapping tshuab (qauv Honour - A4) yog ib qho tshiab tsim cov khoom siv ntawv uas siv cov cuab yeej siv siab heev rau kev ua haujlwm siab.
Nrog siab txiav precision, cov khoom siv ntawv tsis siv neeg ua tau raws li cov qauv thoob ntiaj teb, txuag lub sijhawm thiab kev ua haujlwm.
Nta
Daim ntawv txiav thiab ntim tshuab yog tsis siv neeg tag nrho nrog PLC tswj qhov system thiab tshuab automation.
Tag nrho cov txheej txheem muaj xws li unwinding daim ntawv yob, txiav, suav, thauj, reams dispensing, thiab ntim kom cov kev siv zog txo.
Tom qab Muag
Teb 7/24.
Free istallation thiab commerssioning.
Qhia koj cov neeg ua haujlwm.
12 lub hlis warranty.
Kev them nyiaj yug tshuab chaw taws teeb.
Qhia ntxaws ntxaws rau A4 Daim Ntawv Txiav thiab Ntim Tshuab
|
Roll Loading Unit |
Txuas nrog 4 cov yob yob thiab cov khoom sib nqus siab heev - lub zog nres thiab hydraulic system kom cov ntawv tau noj ruaj khov los ntawm tsis muaj qhov txhab lossis tawg. |
|
Slitting Unit |
Siv Delsar's up-slitting riam los ntawm ltalis, ib rab riam nrog zoo dua parting thiab lub neej kev pab cuam 3 zaug ntev dua riam los ntawm lwm hom. |
|
Sheeting Unit |
Siv hnav- cov roj hmab uas muaj zog thiab qib siab ob lub tshuab cyclotron rau kev txiav kom raug thiab ua haujlwm ntev. |
|
Siv cov riam tawv tawv German lub npe St Paul. Cov riam no muaj lub neej ua haujlwm 6 lub sijhawm ntev dua li cov riam zoo sib xws los ntawm lwm hom. |
|
|
Conveying Unit 1 |
Siv ContiTech txoj siv tawv los ntawm lub teb chaws Yelemees thiab Weinview kov npo los ntawm Taiwan. |
|
Daim ntawv Stacking Unit |
Siv lub tog raj kheej tsis muaj piston rods thiab nce thiab nqis lub cev muaj zog los ntawm lub teb chaws Yelemees, txo qhov kev vibration thiab suab nrov. |
|
Conveying Unit 2 |
Stably conveys reams ntawm nplooj ntawv mus rau wrapping unit. |
|
Wrapping Unit |
Wraps reams ntawm nplooj ntawv (500pcs) txiav. |
|
Hluav taws xob Cheebtsam |
Siv Siemens 'PLC thiab Omron's photoelectric hloov, ua kom lub neej ua haujlwm ntev.
|
PLC kov npo yog tib neeg lub cev -tshuab interface (HMI) ntawm lub tshuab txiav ntawv, ua tus choj sib cuam tshuam ntawm tus neeg teb xov tooj thiab PLC system.
Nws ua rau lub sijhawm tiag tiag - saib xyuas cov khoom siv xwm txheej, kev teeb tsa parameter, kho qhov program, thiab kuaj xyuas qhov ua txhaum ntawm kev ua haujlwm kov intuitive. Nws nta lub siab - teb TFT zaub, ntau- kev txhawb nqa lus, thiab kev sib txuas lus ruaj khov nrog PLC, ua kom muaj kev tswj xyuas meej thiab ua haujlwm tau zoo ntawm cov txheej txheem txiav ntawv.
Parameters Table
|
Parameter
|
Specification |
|---|---|
|
Hom zaub |
TFT Xim LCD |
|
Qhov Loj |
8-nti / 10.4-nti (yeem) |
|
Kev daws teeb meem |
800 × 600 pixels |
|
Teb Sijhawm |
Tsawg dua los yog sib npaug li 10ms |
|
Kov Vaj Huam Sib Luag |
Resistive kov |
|
Chaw nres nkoj sib txuas lus |
Ethernet / RS485 / USB |
|
Lus txhawb |
Suav / Askiv / Ntau- hom lus |
|
Program Cia |
200 pawg, 200 txiav ib pab |
|
Positioning raug |
± 0.01 hli |
|
Fais fab mov |
DC 24 V |
|
Ua haujlwm kub |
-10℃~ +55 degree |
|
Fault Diagnosis |
Txhawb nqa 50+ Fault Alarms |
Tus tib neeg no - tshuab interface yog nplooj siab rau cov ntawv txiav tshuab. Nws paub txog kev txiav phau ntawv, tsis siv neeg kho -ntev txiav, cov ntaub ntawv nco thiab kev debugging. Cov cuab yeej ua haujlwm ruaj khov thiab hloov mus rau qhov ntev - lub sijhawm ua haujlwm tsis tu ncua hauv kev luam ntawv thiab ntim khoom.
Product Advantages thiab Customer Benefits
Qhov kev txiav thiab ntim cov kab no muaj kev sib koom ua ke PLC tswj qhov system, ua kom muaj kev sib koom tes ntawm txhua chav nyob thiab txo qis kev hloov kho thaum lub sijhawm ua haujlwm.
Cov txheej txheem hluav taws xob thiab pneumatic layout ua teeb meem yooj yim dua, ua kom lub sij hawm tu ncua.Qhov kev ruaj khov nro tswj thiab tiv thaiv -warping tsim txo cov ntawv jams thiab ntug kev puas tsuaj, txhim kho tag nrho cov nqi ntawm cov khoom tiav thiab txo cov khoom pov tseg hauv kev tsim khoom txhua hnub. Daim ntawv sib dhos kom ruaj khov thiab ruaj khov - suav cov zis pab ua kom yooj yim tshaj tom qab- ua, khaws cia, thiab cov txheej txheem xa khoom.
Nrog cov khoom tseem ceeb ntawm cov khoom siv ruaj khov, lub tshuab txhawb nqa ntev - teev ua haujlwm tas mus li, txo qis qhov tsis ua haujlwm thiab txuas ntxiv lub neej kev pabcuam ntawm tag nrho cov khoom siv. Kev ua haujlwm tsis siv neeg ua haujlwm tag nrho txo cov kev cuam tshuam ntawm phau ntawv, txhim kho kev ruaj ntseg ntau lawm thiab txo kev siv zog rau cov neeg ua haujlwm.
Modular qauv tsim ua kom yooj yim rau kev teeb tsa, commissioning, thiab tom qab hloov cov khoom hnav, ua rau kev tswj hwm txhua hnub zoo dua thiab pab cov neeg siv tswj ntev - lub sijhawm ua haujlwm thiab cov nqi tu.
Cov khoom siv zoo tshaj plaws:
Khoom siv|German carbon steel
Qib|High- zoo nruab nrab carbon steel
Tensile zog|Ntau dua lossis sib npaug li 600MPa
Yield zog|Ntau dua lossis sib npaug li 355MPa
Hardness: HB 180-220
Cov ntsiab lus carbon|0.35% - 0.45%
Feature|High hnav tsis kam, tiv thaiv- deformation, ruaj khov kho cua sov
Qhov zoo tshaj plaws bearing:
|
Yam khoom |
Specification |
|---|---|
|
Hom |
FAG (Lub teb chaws Yelemees) |
|
Khoom siv |
Siab -Ntshiab Chrome Bearing Steel SAE 52100 |
|
Hardness |
HRC 60 - 64 |
|
Qib Precision |
ISO P0 / P6 / P5 |
|
Ua haujlwm kub |
-30℃~ +120 degree |
|
Cage Khoom |
Hlau / Brass / Reinforced Nylon |
|
Hom kev sib khi |
Z, 2 Z, RS, 2RS |
|
Nto Roughness |
Ra Tsawg dua lossis sib npaug li 0.025μm |
|
Tolerance Standard |
DIN & ISO International Standard |
|
Daim ntawv thov |
Ntawv Machinery, txiav tshuab, kis ncej |
Yog tias koj muaj lus nug, thov hu rau peb:
